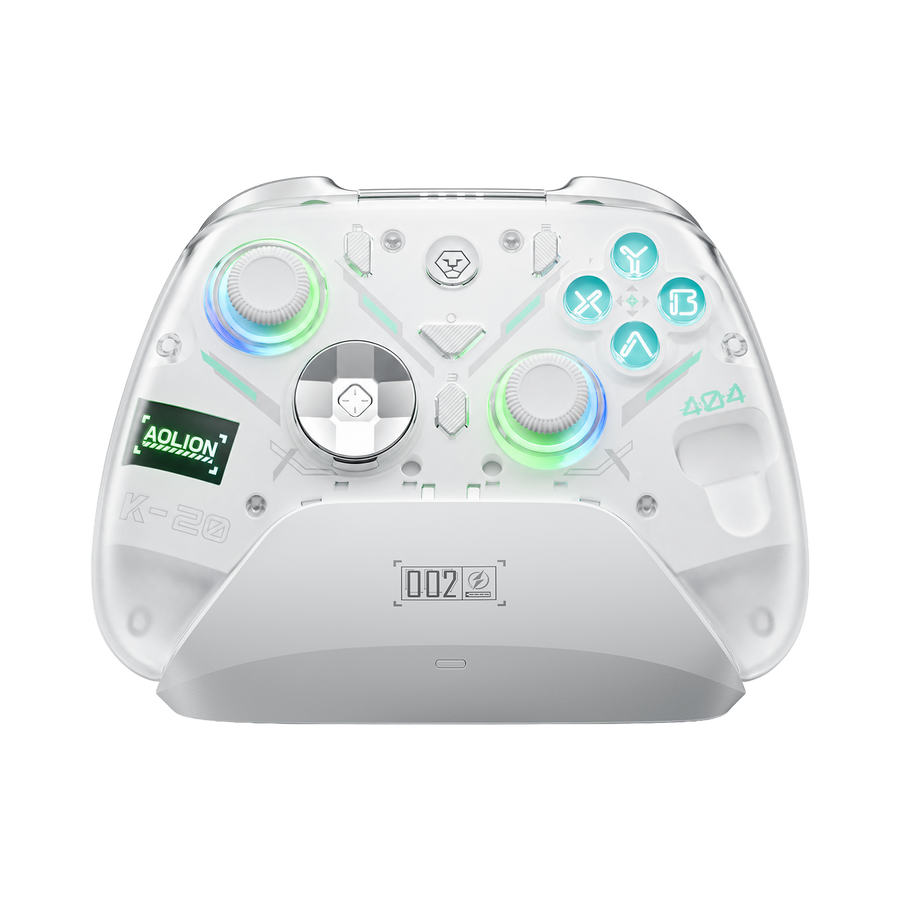

AOLION K20 Support

Find specs, manuals, tutorial articles, FAQs, and troubleshooting guides for your AOLION controller.

Use this page to find setup guidance, product information, downloads, FAQs, and troubleshooting support.

Specs

Key product information and feature details.

Compatible Platforms: Switch/PC/IOS/Android/Steam
NS console: YES
Connection: wired, Bluetooth, receiver
Sticks: k-Sliver™ Hall Effect Joysticks
Joystick Wired Polling Rate: 1000Hz (XINPUT)
Joystick Wireless Polling Rate: 1000Hz (XINPUT)
Triggers: Hall Effect Analog Linear Triggers with 3-level Adjustable Travel
Motion Control: YES,6-axis Gyroscope
ABXY(Buttons): Mechanical Micro Switch
ABXY Layout: Non-replaceable
D-pad: Interchangeable Conductive Rubber (Round / Cross)
Grips: Laser embossed texture
Rumble Motors: 4-level Adjustable Rumble Intensity (100% Strong / 70% Medium / 30% Weak / 0% Off)
Macro Buttons: YES
Back Buttons: YES
RGB Light: YES
Turbo: Yes, adjustable in three levels: 8Hz/16Hz/21Hz
Charging Time: 4-5H
Battery Life: 22H (RGB Light OFF)
Charging Station: Included
Display panel: Controller battery display
Reset function: YES
Mushroom cap height DIY: YES,12mm/15mm
Layout Customization: Swappable Left Joystick & D-pad (Software Mapping)
Joystick Response: Switchable Deadzone/Response Curve (Circular / Square, 0.1% / 9.5% Avg Error)
Faceplate: Magnetic Faceplate
Net Weight: 271g (Single Handle) | 375g (+Base)
